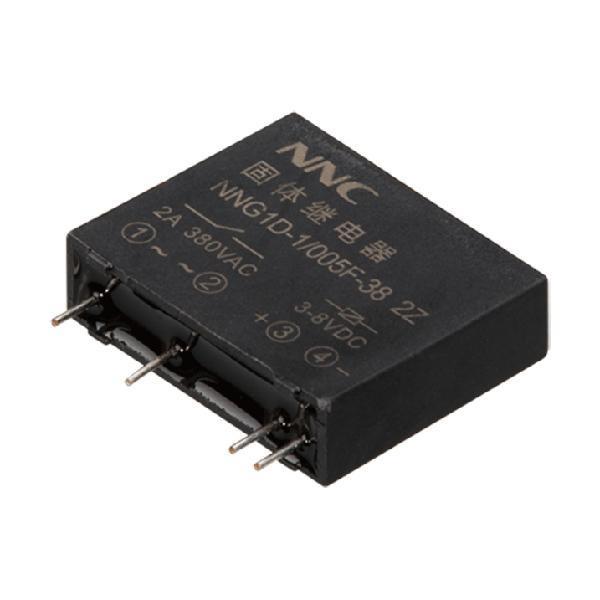

NNG1D-1/005F-38 DC-AC 1A 2A Single Phase Solid State Relay
The NNG1D-1/005F-38 DC-AC 1A 2A single phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the NNG1D-1/005F-38 DC-AC 1A 2A single phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and coal industry which need prevent from explosion, damp, dust and erosion.
| Control voltage | 5V/12V/24V |
| Control current | 5-20mA |
| Connected voltage | 3VDC |
| Turn off voltage | 1VDC |
| Reverse voltage | 32VDC |
| Load voltage | 22:24-240VAC 38:40-440VAC 06:5-60VDC |
| Load current | 1A,2A |
| Transient voltage | 22:220VAC 38:900VAC 06:75VDC 11:150VDC 20:220VDC |
| On-state voltage drop | AC:≤1.6VAC DC:≤1.2VDC |
| On-off time | AC:≤10mS DC:≤5mS |
| Off-state leakage current | AC:≤10mA DC:≤5mA |
| Dielectric withstand voltage | ≥1500VAC |
| Insulation resistance | Testing in 500MΩ,500VDC |
| Environmental temperature | -30℃~80℃ |
| Installation style | Single inline package |
| Relay weight | ≈12g |
| Dimension | 25× 7 ×20mm |
| Notice | Please install the device nearby the heat dissipation window with good ventilation. |
① Dimension figure; ② Install size; ③ Wiring diagram; ④ Control power supply ⑤ Input ⑥ Ssr ⑦ Output ⑧ Load ⑨ Load power supply
