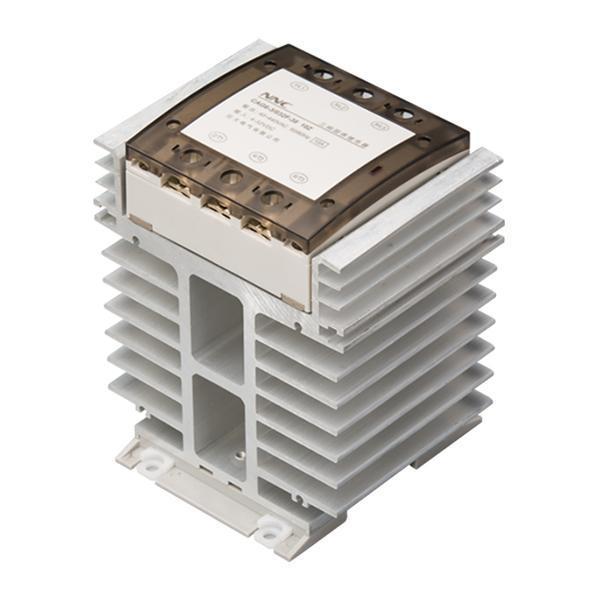

CAG6-3/032F-38 20-40A Three Phase Solid State Relay

CAG6-3/032F-38 20-40A Three Phase Solid State Relay

The CAG6-3/032F-38 20-40A three phase solid state relay is used in the automatic control filed like signal light, scintillator, stage lighting control system, instrument and apparatus, medical equipment, copier, automatic washing machine, automatic fire equipment and security system, and it also can be used as the selector switch of the power capacitor which be compensated by the network power factor. In addition, the CAG6-3/032F-38 20-40A three phase solid state relay is widely used in the bad environment and frequent switching occasions like the chemical industry and coal industry which need prevent from explosion, damp, dust and erosion.

Model explanation

Specification of CAG6-3/032F-38 20-40A three phase solid state relay

Control voltage	32:4-32VDC
Control current	≤20mA
Connected voltage	4VDC
Turn off voltage	2VDC
Interval time	32VDC
Load voltage	38:40-440VAC
Load current	20A 25A 30A 40A
Transient voltage	38:1000VAC
On-state voltage drop	AC:≤1.6VAC
On-off time	AC:≤10mS
Off-state leakage current	AC:≤10mA
Dielectric withstand voltage	≥2500VAC
Insulation resistance	Testing in 500MΩ,500VDC
Environmental temperature	-30℃~80℃
Installation style	Guide rail installation and screw installation
Relay weight	20-30A≈1000g 40A ≈1300g
Dimension	20-30A:100×110×127mm
Dimension	40A:120×110×127mm
Notice	The solid state relay and heat sink can be used separately.

Dimension and installation

① Dimension figure; ② Install size; ③ Wiring diagram; ④ Load power supply; ⑤ Control power supply
