NNT1-R/38 10A-80A Upgraded Solid State Voltage Regulator

NNT1-R/38 10A-80A Upgraded Solid State Voltage Regulator

The NNT1-R/38 10A-80A upgraded solid state voltage regulator is applied to adjust the analog quantity like power, voltage, temperature,luminance and speed in the petrochemical industry apparatus, food machinery, packaging machinery, textile machinery, stage light.

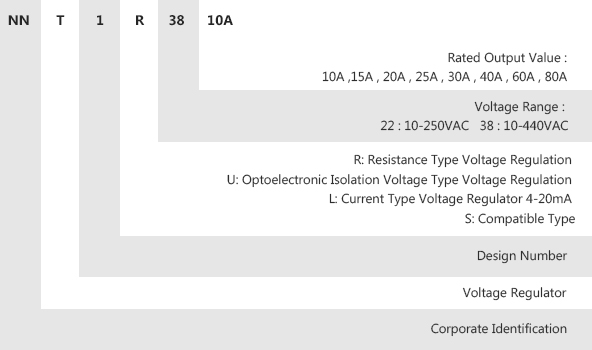

Model explanation

Specification of NNT1-R/38 10A-80A upgraded solid state voltage regulator

Control mode	2W470-560KΩ Potentiometer regulation
Phase shift range	0-175°
Voltage regulating range	22:10-250VAC 38:10-440 VAC
Load voltage	22:220VAC 38:380 VAC
Load current	10 15 20 25 30 40 60 80A
Transient voltage	22:600VAC 38:900VAC
Minimum blocking	≤3VAC
Isolation voltage	No isolation
Off-state leakage current	≤10mA
Dielectric withstand voltage	≥2500VAC Output terminal-heat sink
Insulation resistance	Testing in 500MΩ,500VDC
Environmental temperature	-30℃~80℃
Regulator weight	10A≈110g 80A≈145g
Dimension	60×45×27.5mm
Installation style	Screw installation
Working indicator	LED
Notice	When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be cooled by air fan or water.

Dimension and installation

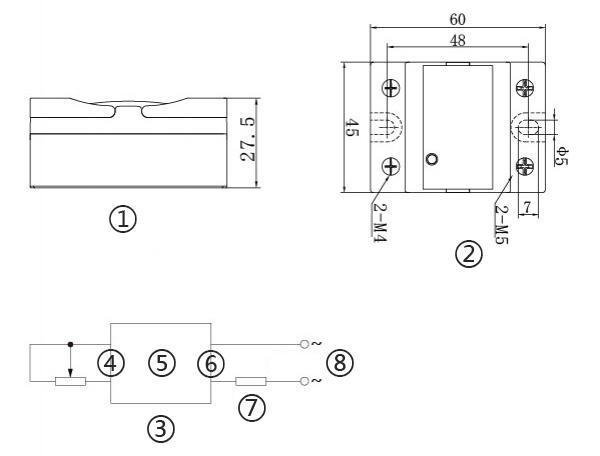

① Dimension figure; ② Install size ; ③ Wiring diagram; ④ Input; ⑤ SSVR; ⑥ Output; ⑦ Load; ⑧ Load power supply
