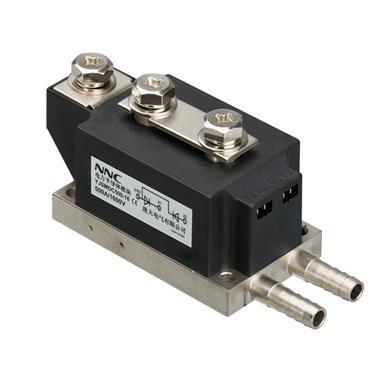

The 300A-800A MDC MDA MDK rectifier diode module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.
|Forward average current||A||300||400||500||600||800||1000|
|Repetitive peak reverse voltage||V||400-2600|
|On stage peak voltage/current||V||1.5||1.65||1.65||1.65||1.65||1.65|
|Repetitive peak reverse current||mA||20||40||40||40||40||40|
|Forward current effective value||mA||471||640||785||785||785||785|
|Maximum rated junction temperature||℃||150|
