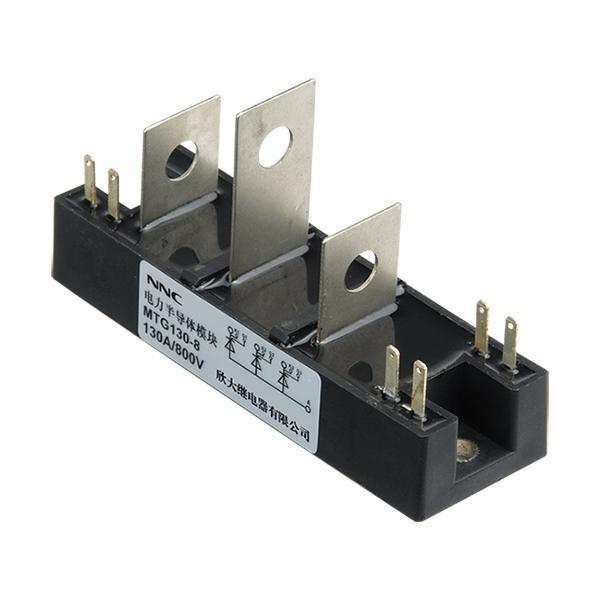

110A-160A MTG MTY Welding Rectifier Thyristor Module

The 110A-160A MTG MTY welding rectifier thyristor module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.

Model specification
Technical parameters
Model MT_110A MT_130A MT_160A
On state average current A 110 130 160
Off state repetitive peak reverse voltage V 400-2600 400-2600 400-2600
On stage peak voltage/current V 1.67 1.67 1.67
A 330 390 480
Repetitive forward-reverse peak current mA 12 12 12
Trigger current mA 100 100 100
Trigger voltage V 2.5 2.5 2.5
Holding current mA 100 100 100
Off state voltage critical rising rate V/μs 800 800 800
On state current critical rising rate A/μs 100 100 100
Maximum rated junction temperature ℃ 125 125 125

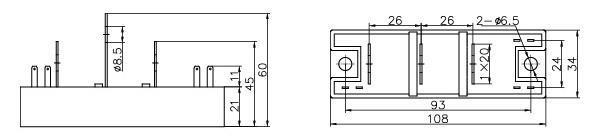

Dimension and installation style
130A-160A
Dimension and installation style
Wiring diagram
Wiring diagram
