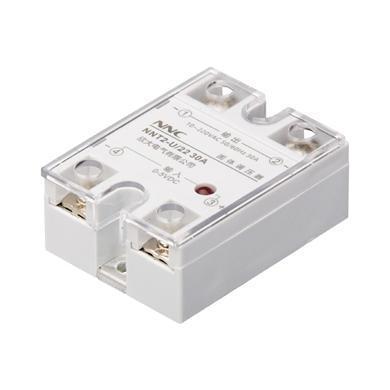

- NNT2-U/22 10A-40A Solid State Voltage Regulator
NNT2-U/22 10A-40A Solid State Voltage Regulator
The NNT2-U/22 10A-40A solid state voltage regulator is applied to adjust the analog quantity like power, voltage, temperature,luminance and speed in the petrochemical industry apparatus, food machinery,packaging machinery,textile machinery, stage light.
NN: Corporate identification
T:Voltage regulator
2: Design number
U: : R: Resistance type voltage regulation U: optoelectronic isolation voltage type voltage regulation L: Current type voltage regulator 4-20mA S:Compatible type
22:Voltage range:22:10-250VAC
10A: Rated current value:10A 15A 20A 25A 30A 40A
| Control mode | 0-5VDC or 0-10VDC regulation |
| Phase shift range | 0-175° |
| Voltage regulating range | 22:10-250VAC |
| Load voltage | 22:220VAC |
| Load current | 10 15 20 25 30 40A |
| Transient voltage | 22:600VAC |
| Minimum blocking | ≤3VAC |
| Isolation voltage | Passive full isolation |
| Off-state leakage current | ≤10mA |
| Dielectric withstand voltage | ≥2500VAC Output terminal-heat sink |
| Insulation resistance | Testing in 500MΩ,500VDC |
| Environmental temperature | -30℃~80℃ |
| Regulator weight | ≈95g |
| Dimension | 60×45×26mm |
| Installation style | Screw installation |
| Working indicator | LED |
| Notice | When the load is more than 10A, the device must install the heat sink, and when the working temperature is more than 80℃, the device must be cooled by air fan or water. |

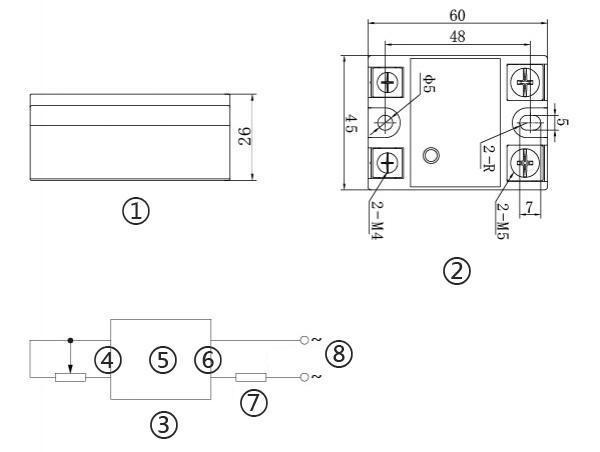

① Dimension figure; ② Install size ; ③ Wiring diagram; ④ Input; ⑤ SSVR; ⑥ Output; ⑦ Load; ⑧ Load power supply
