130A-180A MTC MTK MTA MTX Thyristor Switching Module

130A-180A MTC MTK MTA MTX Thyristor Switching Module

The 130A-180A MTC MTK MTA MTX thyristor switching module is applied in the cutting process like the rectification, heating, speed governing, voltage stabilization, inverter, compensation, electroplate, electrolysis, spot welding and electric welding, and it also can be used in the devices like the charge-discharge device and soft start device.

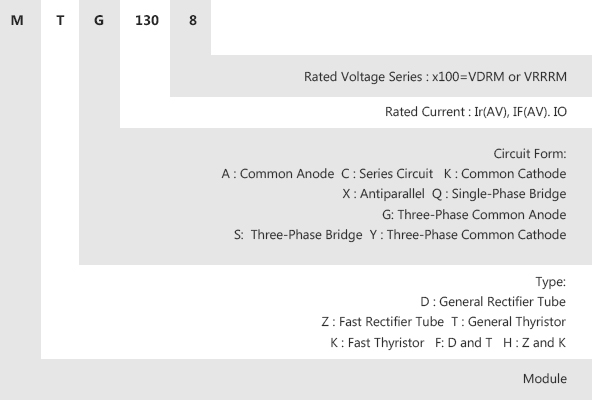

Model specification

Technical parameters

Model		MT_130A	MT_160A	MT_180A
On state average current	A	130	160	180
Repetitive peak reverse voltage	V	400-2600	400-2600	400-2600
On stage peak voltage/current	V	1.9	1.9	1.9
On stage peak voltage/current	A	410	480	540
Repetitive forward-reverse peak current	mA	25	25	25
Trigger current	mA	150	150	150
Trigger voltage	V	2.5	2.5	2.5
Holding current	mA	100	100	100
Off state voltage critical rising rate	V/μs	800	800	800
On state current critical rising rate	A/μs	50	50	50
Maximum rated junction temperature	℃	125	125	125
Insulation voltage	V(AC)	2500	2500	2500

Dimension and installation style

① Dimension figure; ② Installation size; ③ Wiring diagram;
